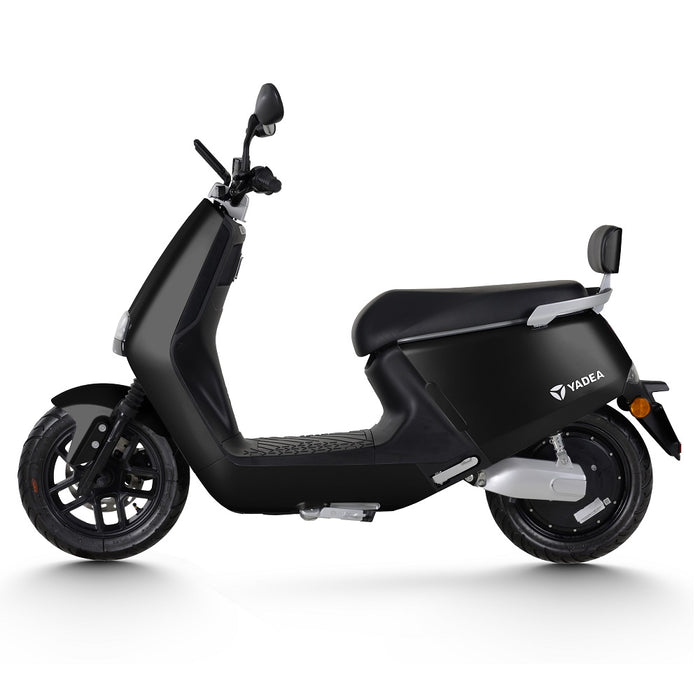

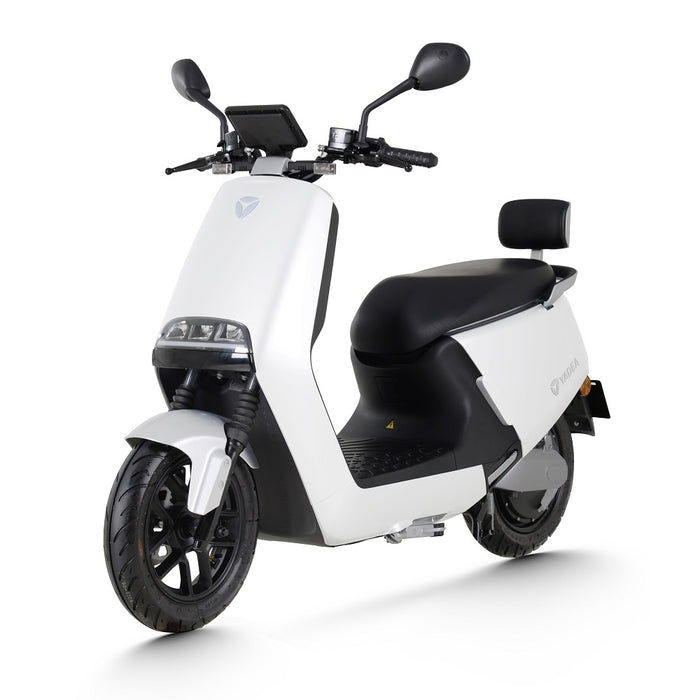

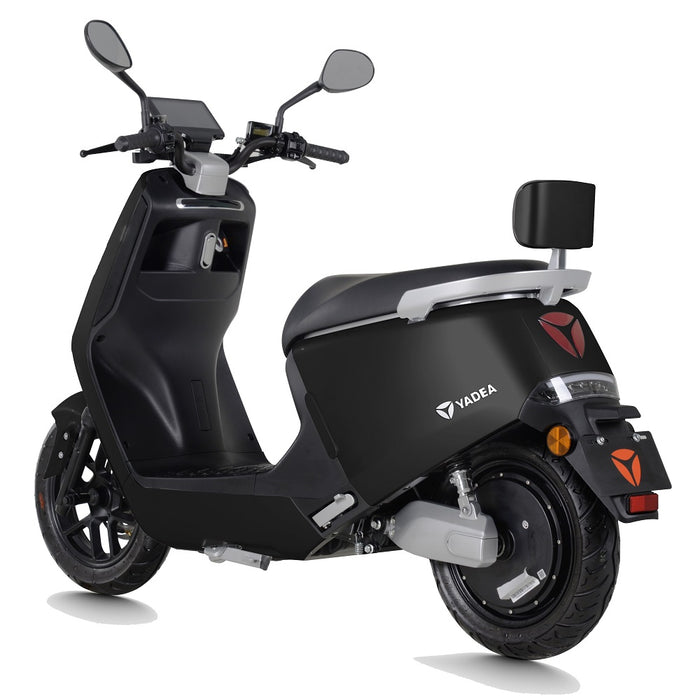

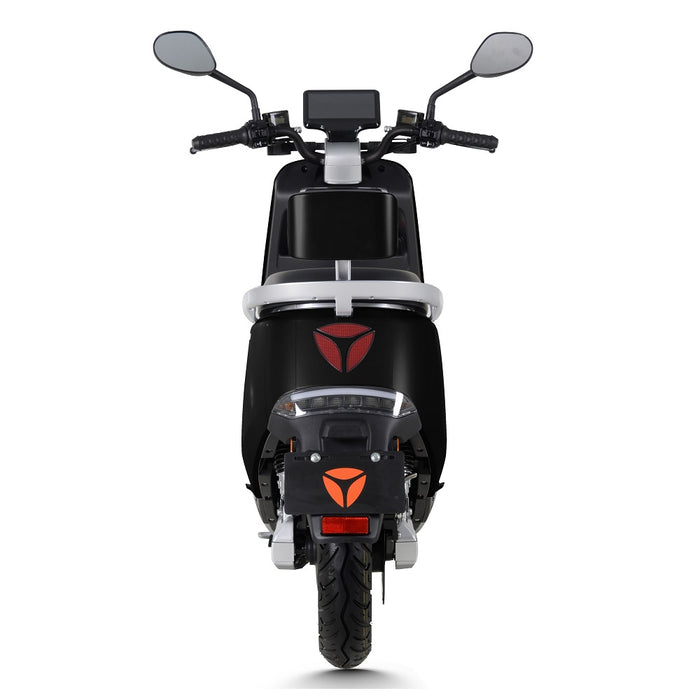

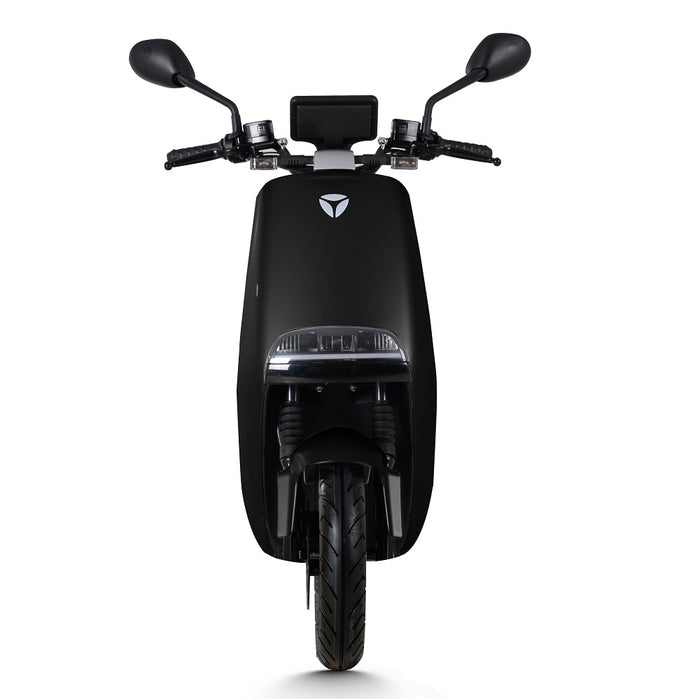

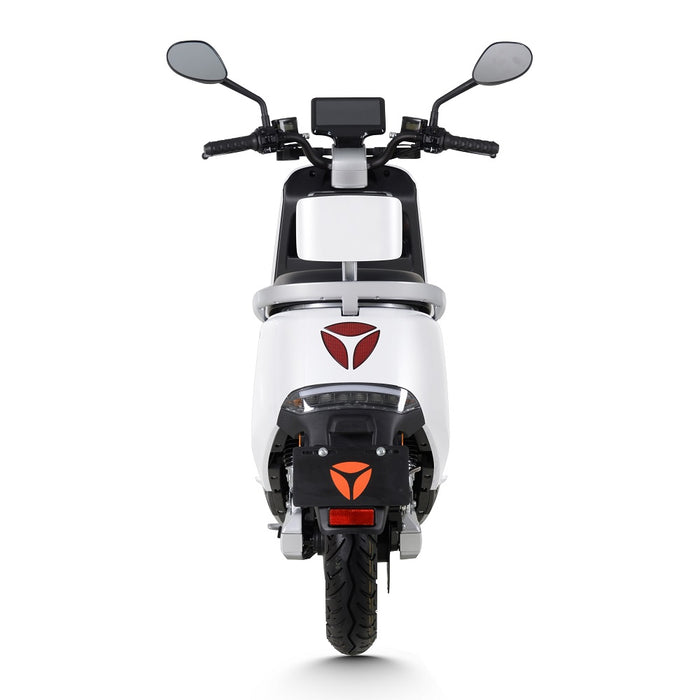

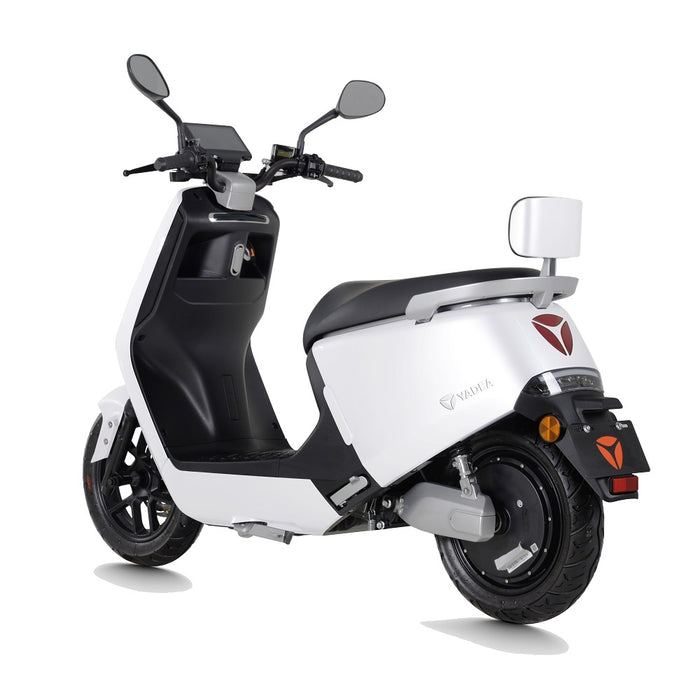

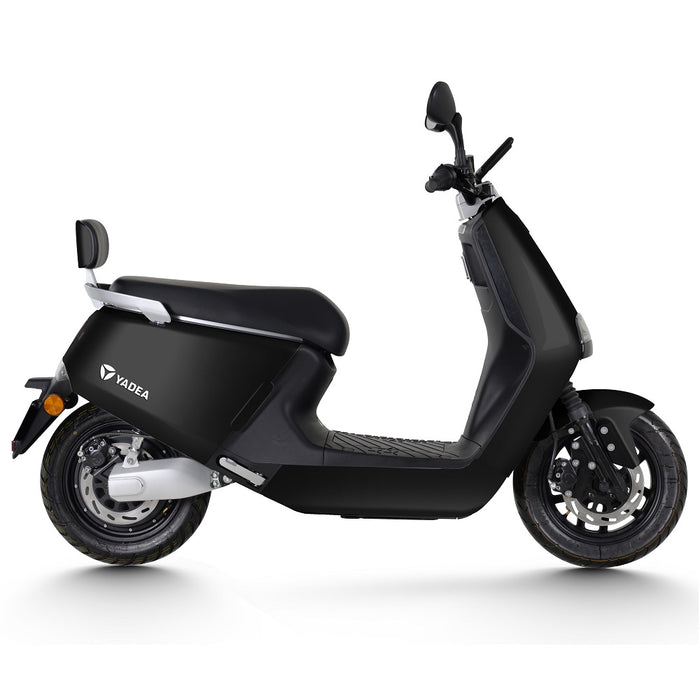

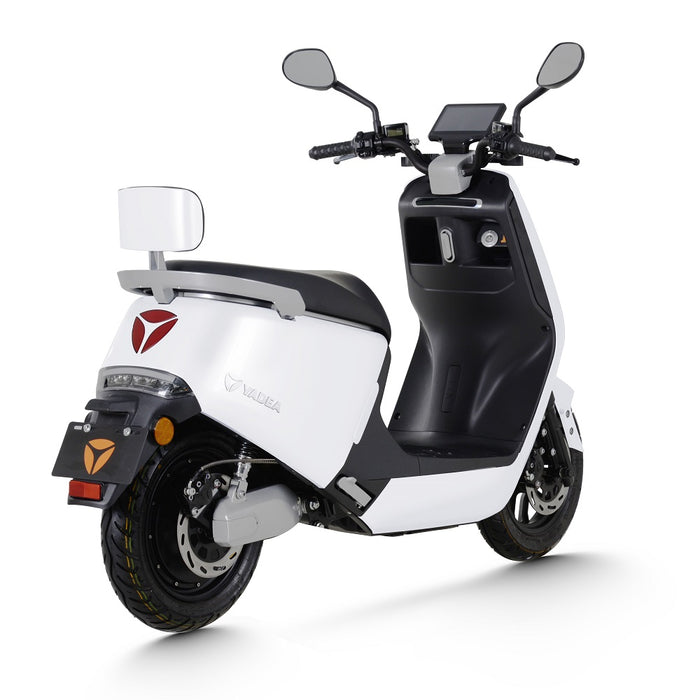

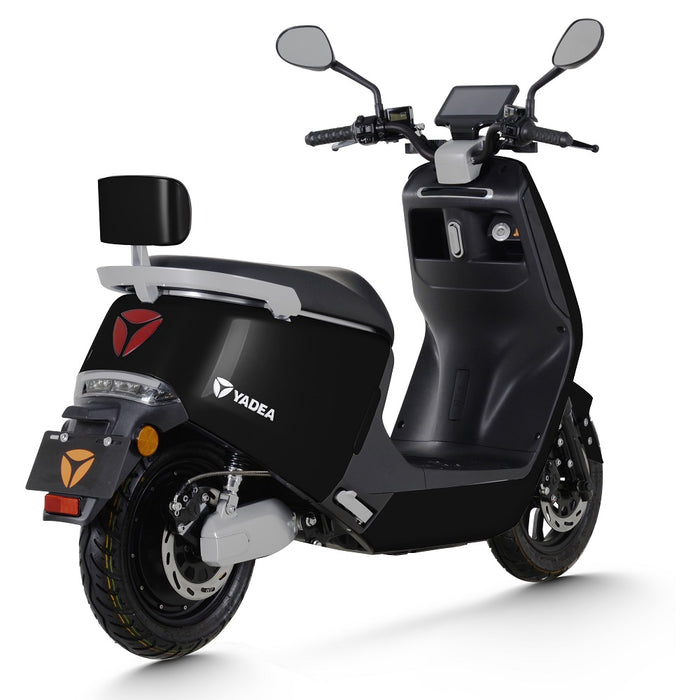

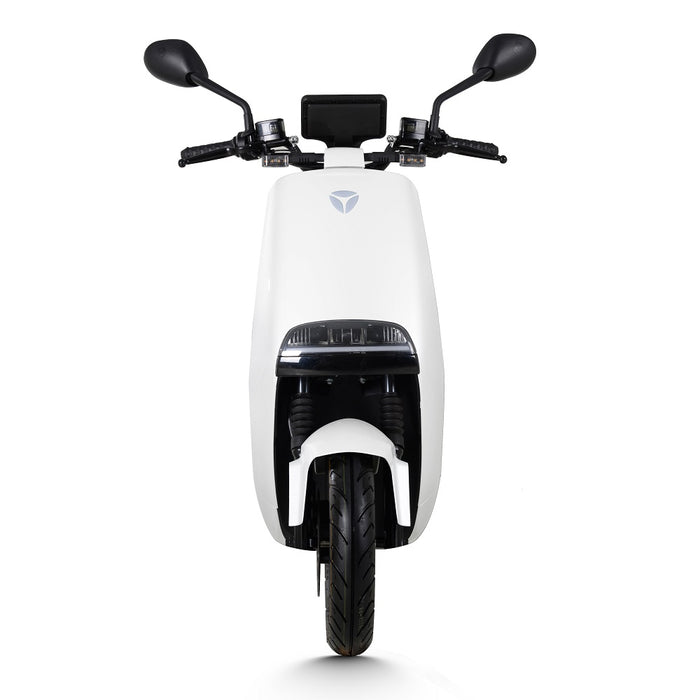

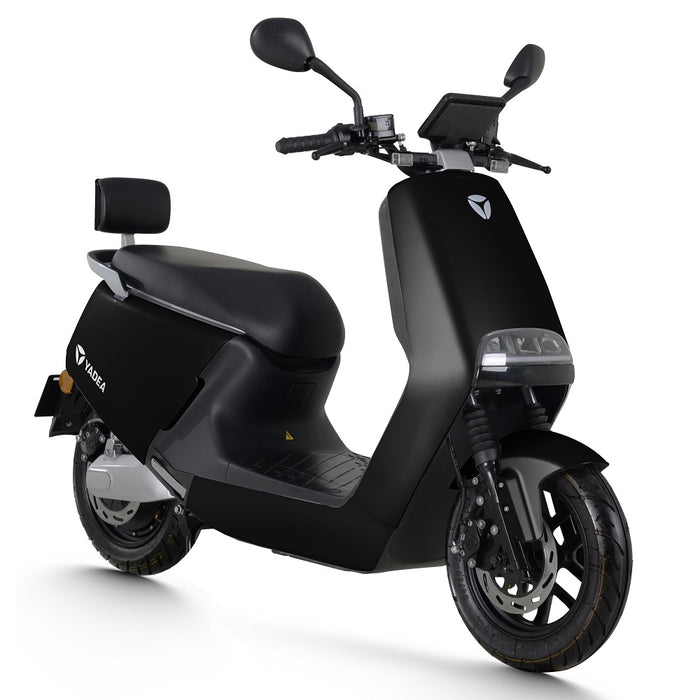

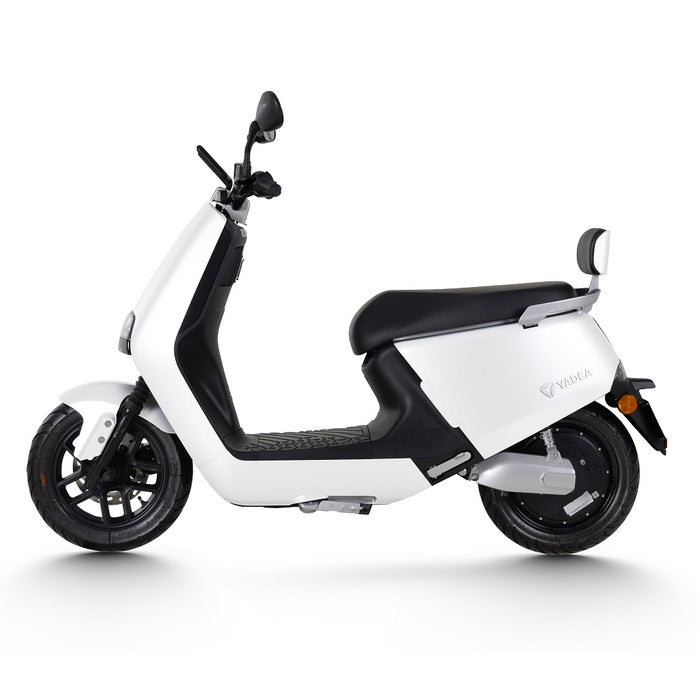

YADEA G5 Graphene

Fortnightly in 4 interest-free payments of $798.75
Pay Weekly in 6 interest-free payments of $532.50
6 Weeks in 4 interest-free payments of $798.75

The new generation YADEA G5 Graphene combines the strong manufacturing advantages and technological strength of YADEA.


Key Features:

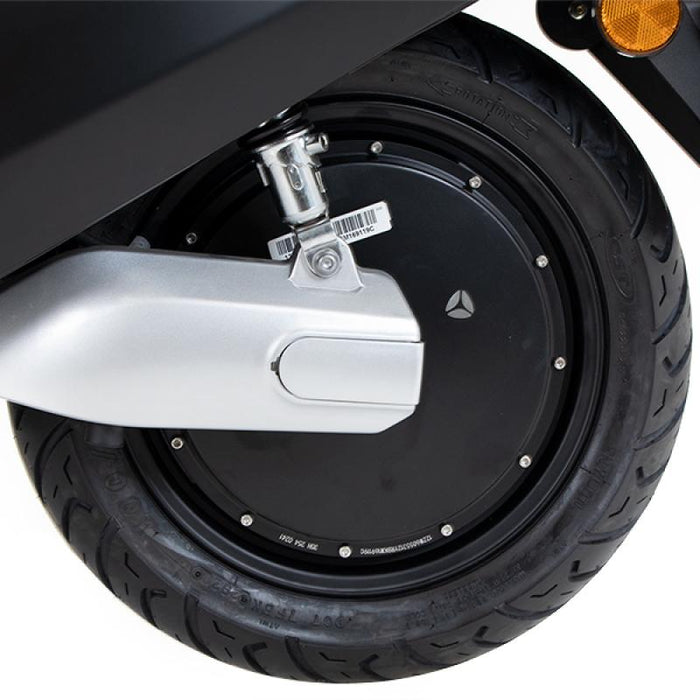

[ GTR 3.0 Broadband Motor  ]
- IP57 Waterproof Rating
- 2300W Max Power
- 120N.m Max Torque on the motor

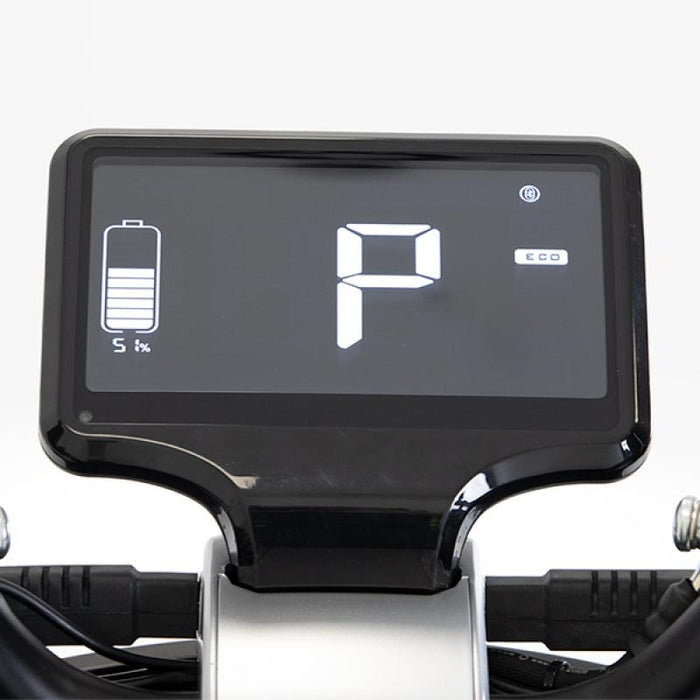

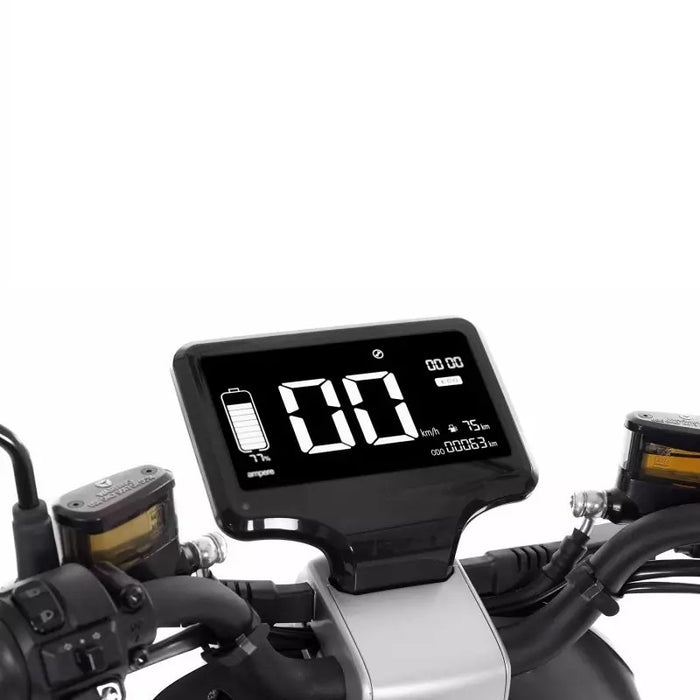

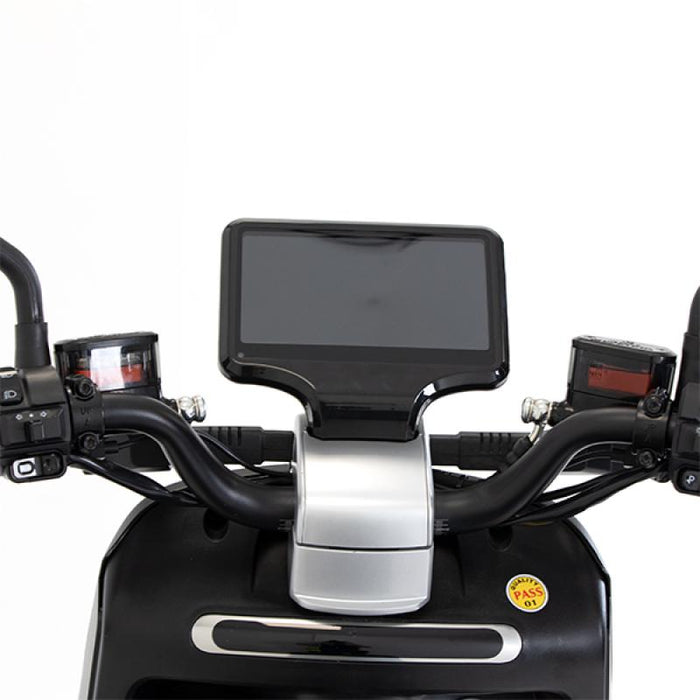

[ 7-inch VA LCD Speedmeter ]
- Precise Remaining Power Display
- Adjust Lightness Automatically


[ Tolerant Temperature: -20„ƒ-55„ƒ ]
- Short Circuit Protection
- Over Current Protection
- Over Charging Protection
- Over Discharging Protection

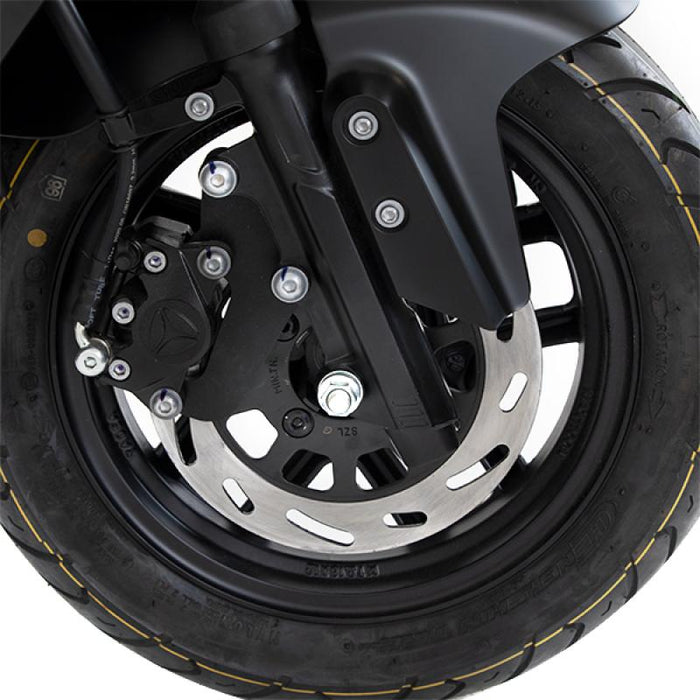

[ Front & Rear Opposed Cylinder Disc Brakes ]
- Equipped with 220mm Hydraulic Disc Brakes. Front & Rear disc plate to provide strong braking force


[ Cold-rolled Steeless Frame ]
- Crafted with 47 processes. Coated with electrophoresis and spray film for anti-corrosion.
- 1 million times vibration test, 1 x thickness comparing to electrophoresis, 90% Sealability whole vehicle Waterproof


[ Pure Aluminum Rear Shock ]
- No defect after 100 million times vibration test with 155kg loading


Other Features:

[ 72V 22AH Graphene Battery ]

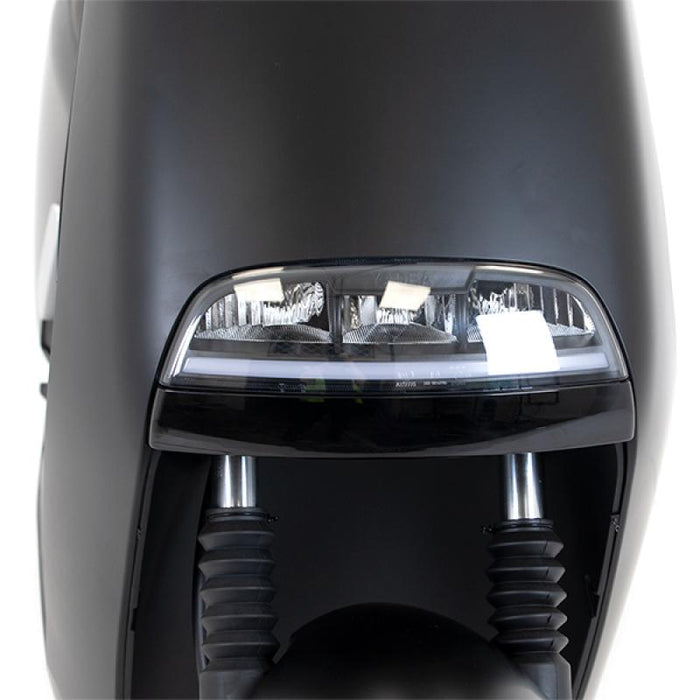

[ LED Headlamp, Tail lamp, and Indicators ]

[ No Motorbike License is required ]

[ No W.O.F required ]

[ 12 Months Warranty (T's & C's Apply) ]

Engine Type: DC brushless motor
Nominal Power: 1200W
Max. Power: 2300W
Battery: Graphene Lead-Acid Battery
Battery Capacity: 72V22AH
Charging time (0-100%): 6-8h
Distance Range                            60-70km
Suspension Front: Hydraulic Shock Absorber
Suspension Rear: Hydraulic Shock Absorber
Wheel/Tyre Front: 90/90-12 Tubeless Tyre
Wheel/Tyre Rear: 100/80-12 Tubeless Tyre
Brake Front: Disc Brake
Brake Rear: Disc Brake
Lights: LED

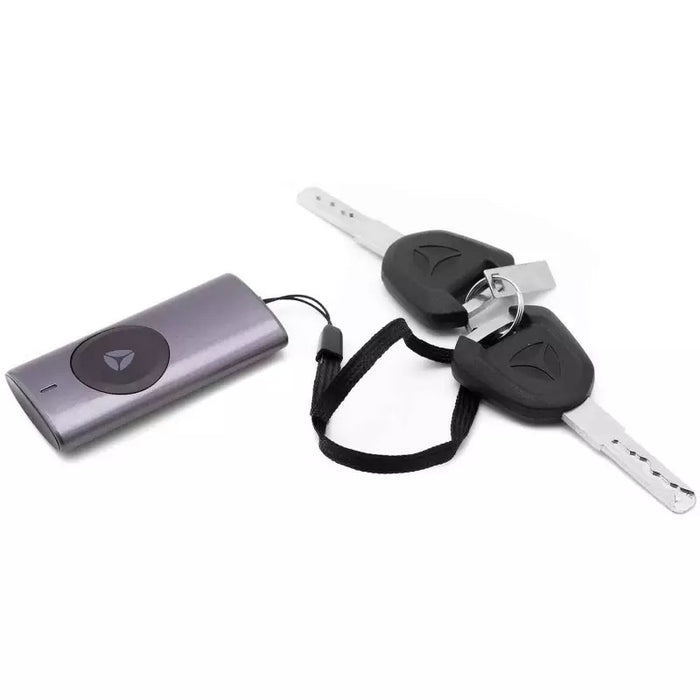

Ignition: Key
Wheelbase: 1270mm

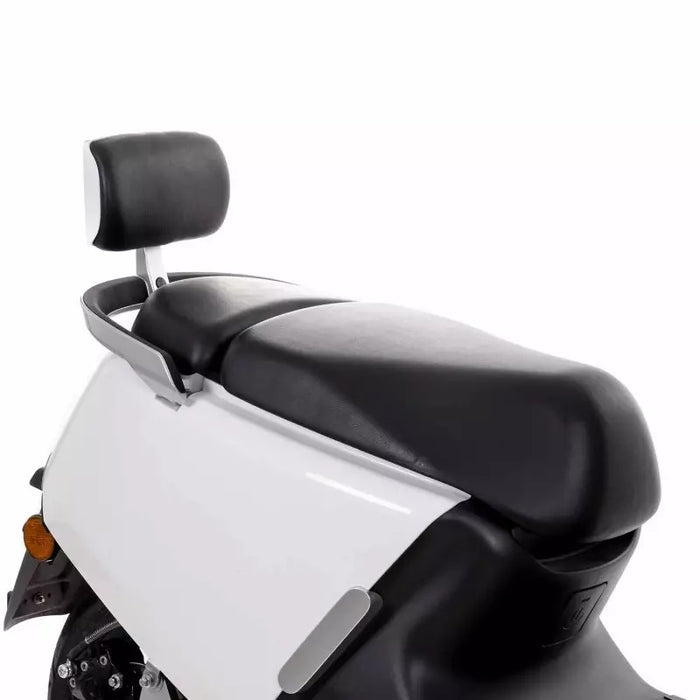

Seat Height: 800mm
Ground Clearance: 160mm
Curb Weight: 127kg
Max Load: 150kg
Dimensions: 1810mm (L) x 700mm ((W) x 1150mm (H)
